Aria FAST mobile water units provide a short- or long-term solution including temporary emergency relief for municipal and industrial water treatment applications.
We deliver the water you need, when and where you need it. Our containerized systems are quickly and easily installed and begin producing high-quality water in as little as four hours after arrival on site.
Mobile trailers are available with these membrane treatment technologies:
Microfiltration (MF) / Ultrafiltration (UF)
Reverse Osmosis (RO) / Closed-Circuit Reverse Osmosis (CCRO)
Aria FAST C60-NA
Loading video...
In addition to functioning as a standalone water treatment system, our mobile units can quickly connect to an existing plant for additional capacity. Mobile units are available for short-term rental or long-term deployment.
Flexible financing options, minimal infrastructure, and low operating costs make the Aria FAST a cost-effective option for your treatment needs.
When time is of the essence, immediate water treatment is the best solution. Our mobile units can be deployed within hours and start producing fresh water shortly after arrival on site.
Our mobile systems are backed by a proven track record across North America. Our remote monitoring and diagnostic tools, combined with a dedicated service team, mean that your systems stay up and running.
Flexible, custom water treatment systems for mid- and large-scale projects. Our custom water treatment solutions can operate with multiple low-pressure membrane options.

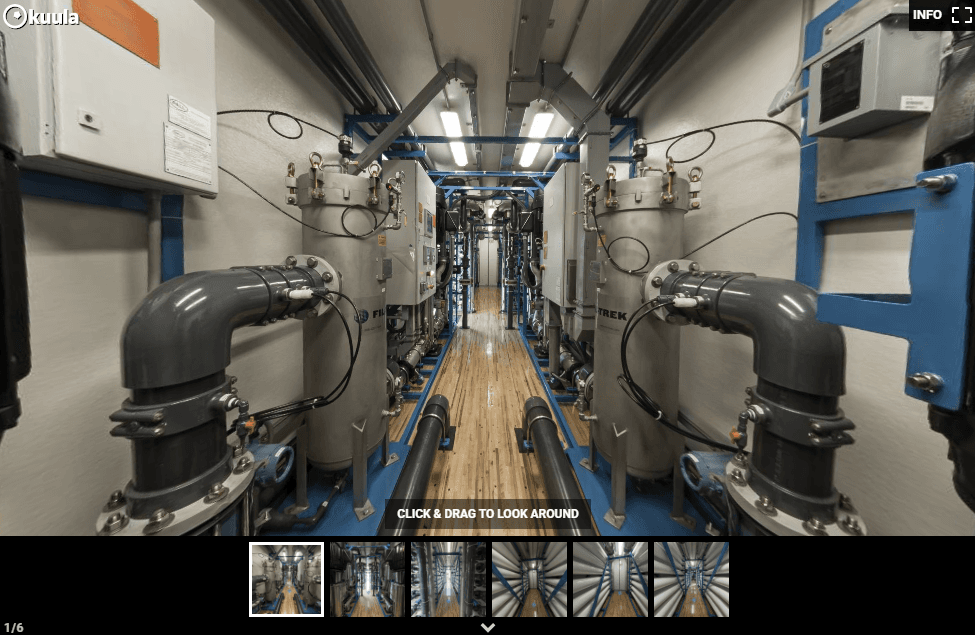

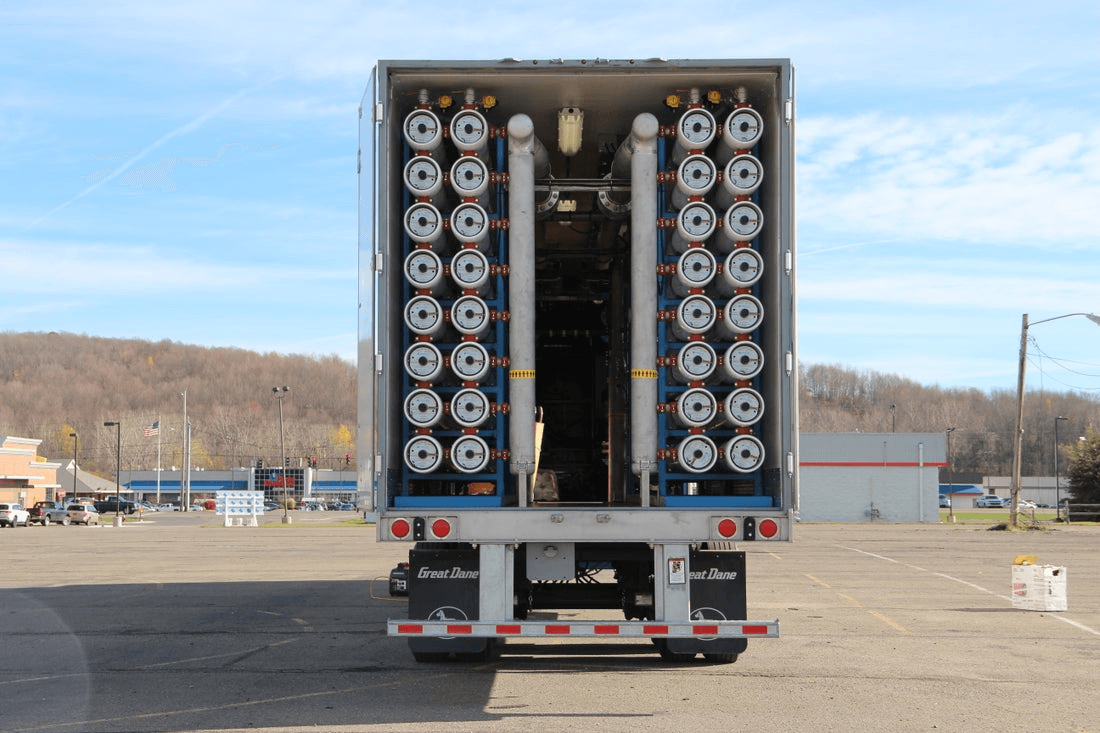

The IMPRO™ (Intelligent Maximum Performance Reverse Osmosis) high-recovery, closed-circuit reverse osmosis (CCRO) trailer solves the limitations of conventional RO, making operation easier and more reliable. The rapidly deployable, containerized mobile system provides water when and where you need it.
Aria FAST rental units deploy within hours and can begin producing high-quality water in just hours after arriving on site.
Choose Aria FAST for planned maintenance to meet demand while servicing or upgrading your existing water treatment system.
Purchase or lease containerized Aria FAST assets without the added expense of civil works or the need for additional infrastructure.
High-quality drinking water and wastewater treatment for municipalities, available across the globe.
Quick-to-deploy mobile solutions for water recycling and reuse in municipal and industrial applications.
The most effective solutions to treat seawater and prevent premature RO fouling caused by seawater contaminants.
Mobile water treatment solutions that are designed to handle water for industrial use and increasing plant capacity.

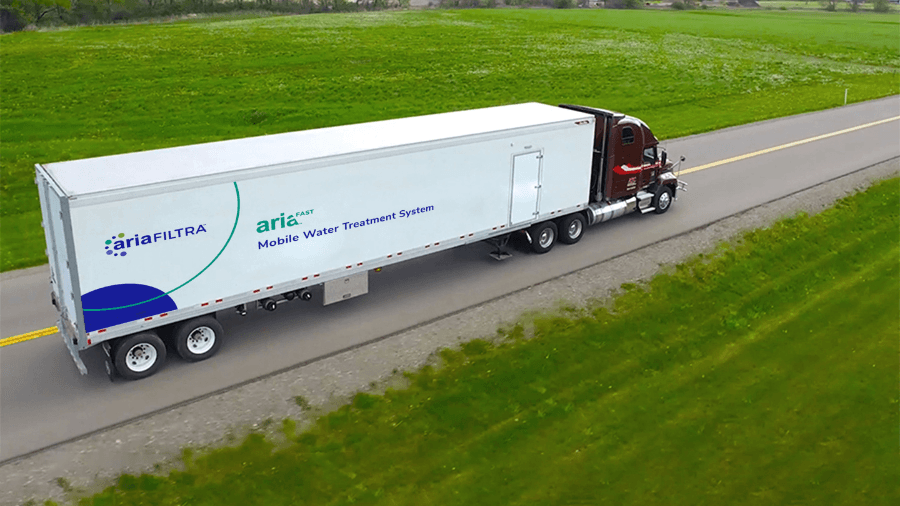

Aria FAST units provide water filtration on wheels. The Aria Filtra® mobile water treatment system comprises a complete, automated, packaged Aria FAST membrane filtration system mounted in a trailer or container.
The robust hollow-fiber membrane design offers system strength and provides absolute filtration to finer levels, which helps protect downstream equipment and ultimately, minimize downtime. Its innovative and advanced filtration technology treats a wide range of variable water and wastewater sources and can be adapted to variations in feed water composition, temperature, and flow while delivering high-quality water.
Aria Filtra has a proven track record of best-in-class filtration technology, service, and support.
Variable rate contracts, minimal infrastructure, and low operating cost make Aria FAST mobile rental units a cost-effective option for immediate water treatment needs.
Transform ground water, surface water, or secondary effluent into water free of harmful bacteria, cysts, and particles.
Get a long-term solution or temporary emergency relief for municipal and industrial water treatment applications.
Trust our remote monitoring and diagnostic tools backed by a dedicated global service team
Products :
Container Connections: | Type: Grooved (Optional: Flanged) Material: HDPE with 304SST reinforcement Raw water inlet: 8 in. (200 mm) Membrane filtrate outlet: 8 in. (200 mm) Clean-in-place / backwash waste outlet: 8 in. (200 mm) Misc. gravity waste outlet: 3 in. (75 mm) |
Container Details: | Type: Trailer Length: 48 ft (14.6 m) Height: 13.6 ft (4.1 m) Width: 8.6 ft (2.6 m) Shipping weight: 30,700 lbs (14,000 kg) Operating weight: 59,000 lbs (26,800 kg) |
Filtrate Quality: | Typical Turbidity: ˂0.02 NTU Maximum Turbidity: ˂0.05 NTU Typical SDI: ˂2.5 Maximum SDI: ˂3 Bacteria and Particles: ˃0.1µ removed to nondetectable limits (˃ 99.999%) |
|
Container Connections: | Type: Flanged Material: PVC / HDPE Raw water inlet: 8 in. (200 mm) Membrane filtrate outlet: 8 in. (200 mm) Backwash drain: 8 in. (200 mm) Chemical drain (gravity): 4 in. (100 mm) Filtrate (backwash) water supply: 6 in. (150 mm) Misc. (gravity) drain: 2 in (50 mm) |
Container Details: | Type: Container Length: 40 ft (12.2 m) Height: 9.7 ft (2.9 m) Width: 8 ft (2.4 m) Shipping weight: 38,000 lb (17,236 kg) Operating weight: 51,000 lb (23,133 kg) Amperage required: 106 FLA with 175A main breaker |
Filtrate Quality: | Typical Turbidity: <0.02 NTU Maximum Turbidity: <0.1 NTU Typical SDI: <2.5 Maximum SDI: <3 Note: Microorganisms like cryptosporidium and giardia cysts are removed with more than 6 log RR or 99.9999%, while particles are removed typically to nondetectable limits. |
Explore the Aria Filtra® mobile solution. Select different views and zoom in to see the system up close.
Using robust membrane filtration, Aria FAST mobile water treatment systems transform discharge water, ground water, surface water, and secondary effluent into water that is free of harmful bacteria, cysts, and particles. Once treated, this water is ready for drinking water or industrial use. The Aria FAST mobile treatment technology features robust and reliable microfiltration (MF) / ultrafiltration (UF) membranes. We also provide high-recovery reverse osmosis (RO) membranes in our IMPRO™ containers. These technologies can be used individually, or together for added treatment. Aria FAST mobile water units can deliver 45 gpm to 1,400+ gpm (10 to 320 m3/hr). Multiple units can be configured for larger capacities, providing the quality and quantity of water you need, when and where you need it.
Aria FAST Technical Specifications
Inlet Maximum and Minimum Water Temperature: | 40°C / 4°C (104°F / 40°F) |
Filtrate Turbidity | Max: <0.1 NTU Typical: <0.02 NTU |
Filtrate SDI | Max: <0.1 NTU Typical: <2.5 |
Filtrate Bacteria and Particles
0.1μ removed to nondetectable limits (>99.999%) |
Service: 400 VAC, 3 phase, 60 Hz Customer communication: Analog Remote access / diagnostics: Air card Influent turbidimeter: Standard Effluent turbidimeter: Standard PLC: Allen Bradley L36 |
Special Features: | Complete automated CIP system Operator workstation HVAC |
System: | Membrane: Membrane filtration Maximum capacity: 182 m³/h (800 gpm) Filtration outlet pressure: ˂45 psig (3 bar) Water temperature range: 32°F (0°C) to 104°F (40°C) Air compressor system: 240-gallon receiver |
Instrumentation & Electrical:
Service / voltage required: 460 VAC, 3 phase, 60 Hz Customer communication: Analog or discrete signals Remote access / diagnostics: Standard via eWon modem (Client requires SIM card) Feed turbidimeter: Standard Filtrate turbidimeter: Standard |
Special Features: | Redundant module racks: Optional configuration Automated CIP system: Standard CIP neutralization capability Operator workstation: 15 in. (12.7 cm) touchscreen HVAC: Standard included |
System: | Membrane: Hollow-fiber membrane Max capacity: 1,200 gpm (280 m³/h) Filtration outlet pressure: 5-15 psig (0.3 to 1.0 bar) Water temp range: 32°F (0°C) to 104°F (40°C) Air compressor system: Complete with receiver and automatic condensate valve |
Aria FAST T96
Designed to maximize space, increase plant uptime, and improve the operator experience, the Aria FAST™ T96 provides up to 1,400 gpm to help you meet your water treatment goals. Capable of treating a variety of water types for municipal and industrial applications, the T96 can produce more water than any other self-contained membrane-based trailer, making it an economical choice over existing designs.
-Maximized capacity: At 96 total modules, the T96 maximizes production in a small footprint.
-Turnkey commissioning: Plug-and-play design makes certain your trailer will produce water almost immediately after reaching the site.
-Operational peace of mind: Aria FAST T96 complies with current electrical and drinking water regulations.

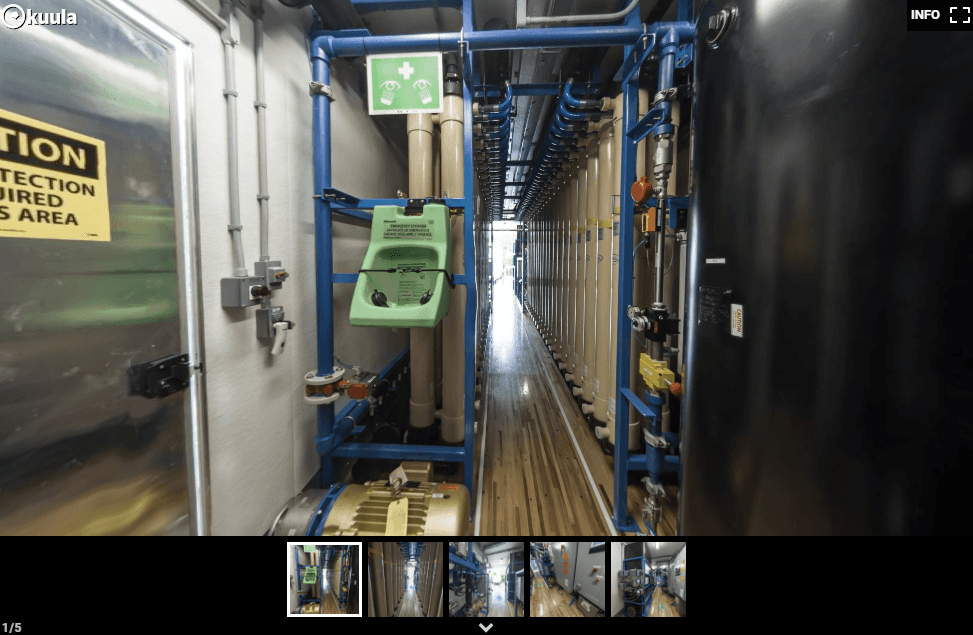

Aria FAST T80
With appropriate site preparation and minimal labor, the system can be operational within hours. All you need to do is supply the source water, connect the effluent pipe, and add 460 VAC 3-phase power.
Includes redundant racks with flexible configuration that can be engineered to operate in tandem with other water treatment technologies.

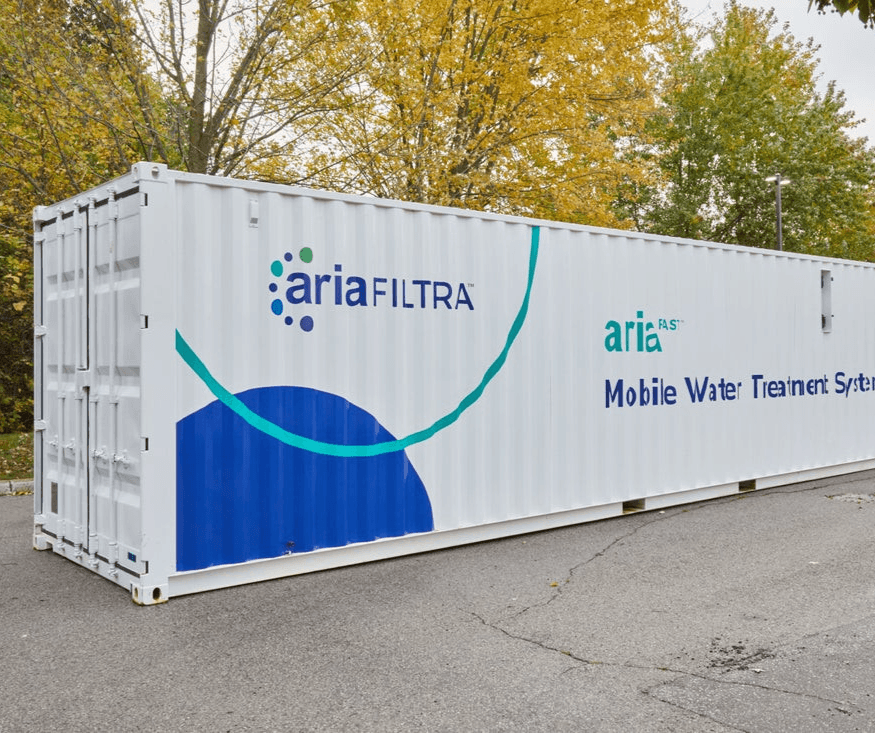

Aria FAST C60
Treat the toughest waters with an Aria FAST container filtration system. The Aria FAST C60 40-ft microfiltration container has filtrate capacity of up to 1,200 gpm (280 m³/hr) for drinking water and industrial wastewater applications.
The Aria FAST mobile rental container program was designed to offer customized water and wastewater treatment solutions. The containers can be configured to meet your specific requirements and/or changing water treatment needs—providing scalability without the CAPEX investment costs.
The containers' compact modular design allow you to place the mobile rental units in tighter spaces at point of use versus larger but more distant spaces, so you can overcome site-specific requirements and/or space restrictions.
Designed with durability in mind, the Aria FAST C60 container incorporates features that improve reliability in harsh conditions. The C60 includes the hydraulic capacity to support excess recirculation (XR) for high-solids applications or in cases of upset conditions or seasonal turbidity spikes.
