Peace of Mind
The TrojanUVSwift® is a testament to our commitment to providing water confidence. Engineered and built for dependable performance, the TrojanUVSwift offers an effective solution for drinking water treatment and taste & odor (T&O) control. TrojanUVSwift has been validated through microbial testing. Performance data has been generated for UV dose delivery to inactivate microorganisms Cryptosporidium, Giardia, E.coli, and Adenovirus.
Loading video...
Features & Benefits

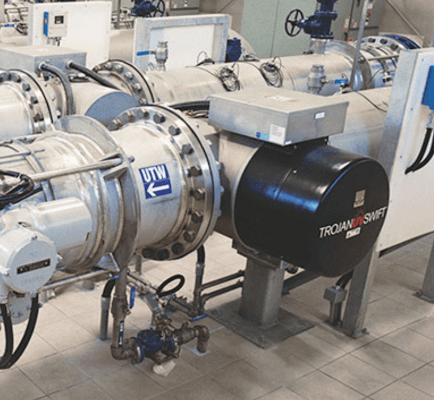

Compact Footprint
Hydraulically efficient and compact design minimizes head loss and maximizes dose delivery. It’s engineered to fit into restrictive pipe galleries and can be installed vertically or horizontally, even immediately after a 90˚ elbow.
Automatic, Dual-action Lamp Sleeve Cleaning
The optional dual-action ActiClean® sleeve cleaning system uses a combination of mechanical wiping and an NSF 60-certified gel to provide unparalleled sleeve cleaning. Quartz sleeves and intensity sensors are cleaned automatically, without disrupting treatment.
Simplified Maintenance

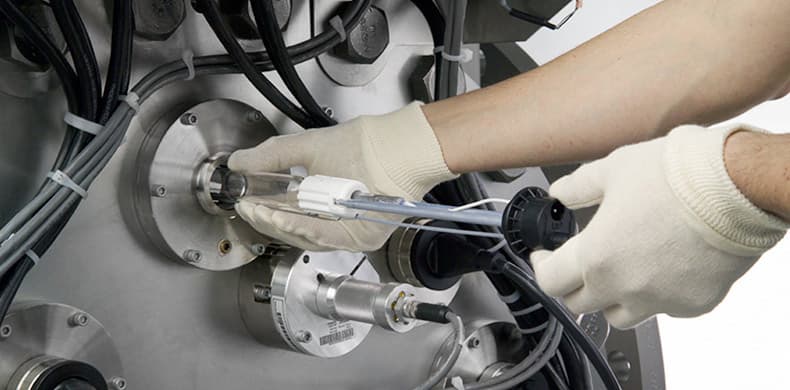

The UV chamber is fully serviceable from one side – allowing the system to be installed tight to walls, other equipment or piping. Routine maintenance procedures, including lamp change-outs and sensor calibration checks, are simple and require minimal time.

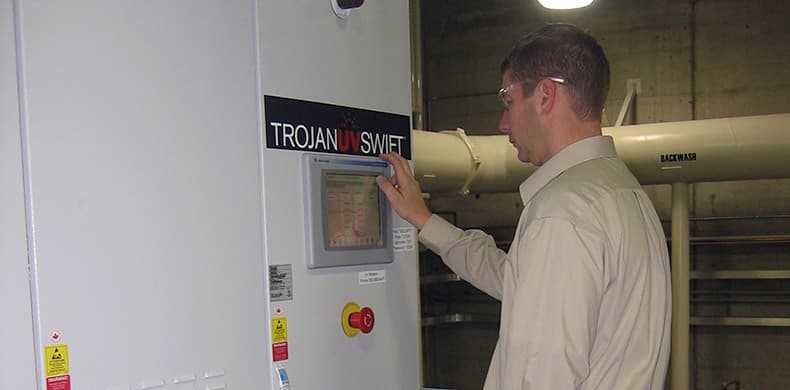

At-a-glance Monitoring
This PLC-based system controls all UV functions and dose pacing to minimize energy use while maintaining required dose. The controller communicates with plant SCADA systems for centralized monitoring of UV performance, lamp status, power levels, hours of operation and alarm status.
Upgradeable for Taste & Odor Treatment
Chambers can be configured for future expansion to cost-effectively meet increased capacity, system redundancy, or taste & odor treatment. The upgraded taste & odor system, known as the TrojanUVSwiftECT, provides year-round microbiological inactivation and simultaneous treatment for seasonal taste & odor events.
System Specifications
System | TrojanUVSwift 12 | TrojanUVSwift 24 |
|---|---|---|
Max Flow Rate | 6 MGD (950 m3/h) | 25 MGD (3950 m3/h) |
UV Transmittance at 254nm/cm-1 | 70 – 98% | |
Number of Lamps | ||
