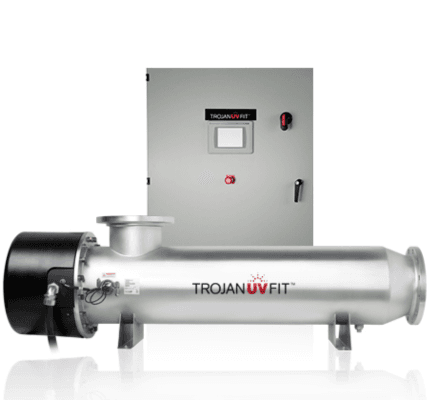

Depending on site and design conditions, wastewater treatment plants producing filtered effluent sometimes prefer a treatment solution using in-pipe (also called closed-vessel) UV chambers. The TrojanUVFit® offers an effective, compact, and energy-efficient solution for non-potable reuse with a streamlined hydraulic profile that won’t break head in the treatment process. The system is available in multiple configurations to treat a wide range of flow rates, up to 7 MGD per chamber.

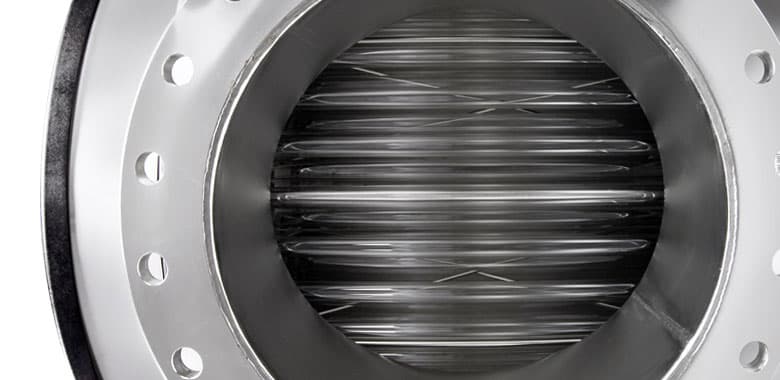

The sleeve cleaning system minimizes fouling of quartz sleeves, ensuring the maximum UV output is available. The system works automatically at preset intervals without operator involvement and without interrupting treatment.

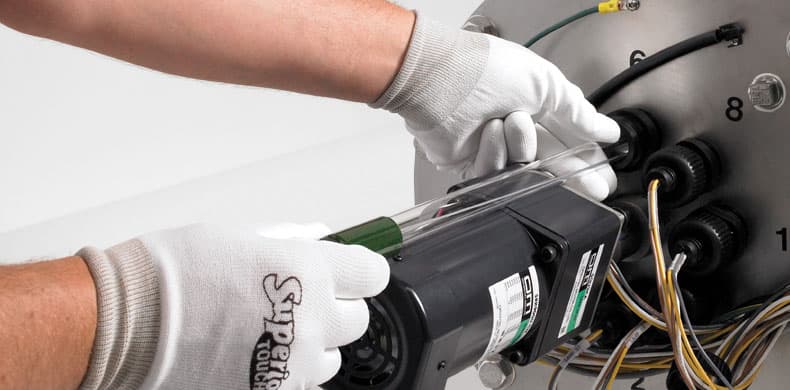

UV lamps, quartz sleeves, lamp drivers, sensors and the sleeve cleaning system have been proven reliable and are operating in hundreds of installations. Internal components are all easily accessed from the end cap which, when removed, automatically deactivates lamps for operator safety. Routine procedures, such as lamp change-outs are simple and require minimal time.
The TrojanUVFit has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate Poliovirus, Escherichia coli (E. coli ) and fecal coliform.
For reuse applications in California, the California Department of Public Health has approved several TrojanUVFit models for Title 22 reuse applications.
Model | 04AL20 | 08AL20 | 18AL40 | 32AL50 | ||
|---|---|---|---|---|---|---|
Number of Lamps | 4 | 8 | 18 | 32 | ||
Lamp Type | High-efficiency, High-output, Low-pressure Amalgam | |||||
Sleeve Wiping | Automatic wiping system | |||||
Lamp Driver | Electronic, constant output (100% power) or electronic, variable output (60 to 100% power) | |||||
Chamber | 04AL20 | 08AL20 | 18AL40 | 32AL50 | ||
|---|---|---|---|---|---|---|
Materials of Construction | 316L Stainless Steel | |||||
Flange Size (ANSI/DIN), inches (mm) | 6 (150) | 10 (250) | ||||
Power Distribution Center (PDC) | 04AL20 | 08AL20 | 18AL40 | 32AL50 | ||
|---|---|---|---|---|---|---|
Electrical Supply | Standard: Single phase, 2 wire + gnd, 50/60 Hz L-L | 120V | N/A | |||
System Control Center (SCC) | 04AL20 | 08AL20 | 18AL40 | 32AL50 | ||
|---|---|---|---|---|---|---|
Panel is Required/Optional | N/A (requires only PDC) | Optional | ||||
Electrical | N/A (see PDC) | |||||
TrojanUVFit Brochure
Complete product overview and specifications for the TrojanUVFit system, including technical details, performance data, and application guidelines.
TrojanUV Service & Parts Brochure
TrojanUV is here to help you every step of the way, from system inspections, repairs, training and preventative maintenance to upgrades and genuine replacement parts.
Genuine parts help to ensure proper operation and maintenance of your TrojanUV system.
12 (300)
Outlet Flange Orientation | Multiple orientations available 3, 6, 9 or 12 o’clock position | |||||
Approx. Chamber Length, inches (mm) | 80 (2032) | 82 (2083) | 90 (2286) | |||
Max. Operating Pressure, PSI (bar) | 150 (10) | 100 (6.8) | ||||
Dry Chamber Weight, lbs (kg) | 107 (49) | 115 (52) | 400 (181) | 1600 (726) | ||
Wet Chamber Weight, lbs (kg) | 230 (105) | 877 (398) | 2200 (998) | |||
Standard:
Single phase, 2 wire+ gnd, 50/60 Hz L-L
208V |
Yes |
240V | Yes | |||
3 Phase, 4 wire + gnd, 50/60 Hz | 400/230V | N/A | Yes | ||
Dimensions (H x W x D) inches (mm) | Type 12 | 30 x 16 x 10 (760 x 410 x 250) | 36 x 30 x 10 (920 x 760 x 250) | 60 x 36 x 10 (1520 x 920 x 250) | ||
- | Type 3R | 30 x 16 x 10 (760 x 410 x 250) | ||
- | Type 4X | 30 x 24 x 10 (760 x 610 x 250) | 60 x 36 x 12 (1520 x 920 x 305) | ||
Material | Type 12 | Painted Mild Steel | ||||
- | Type 3R | Painted Mild Steel | ||||
- | Type 4X | 304 Stainless (1.4301 in Europe) | ||||
Panel Rating | NEMA 12, 3R or 4X | NEMA 12 or 4X | ||||
Network Interface | Modbus RTU RS485, Modbus TCP/IP, AB Ethernet I/P, ProfiNet | |||||
Two (2) Supplies of 120 V single phase,
2 wire plus ground, 60 Hz, 1.2 kVA
(one (1) for the PLC, one (1) for lights & heater)
Material | Type 12 | Painted Mild Steel | ||||
- | Type 4X | Stainless (1.4301 in Europe) | ||||
Panel Rating | N/A (see PDC) | NEMA 12 or 4X | ||||
Typical Outputs Provided | Chamber status, common alarms and SCADA communication | |||||
Network Interface | Modbus RTU RS485, Modbus TCP/IP, AB Ethernet I/P, ProfiNet | |||||
In-pipe UV wastewater treatment for non-potable reuse

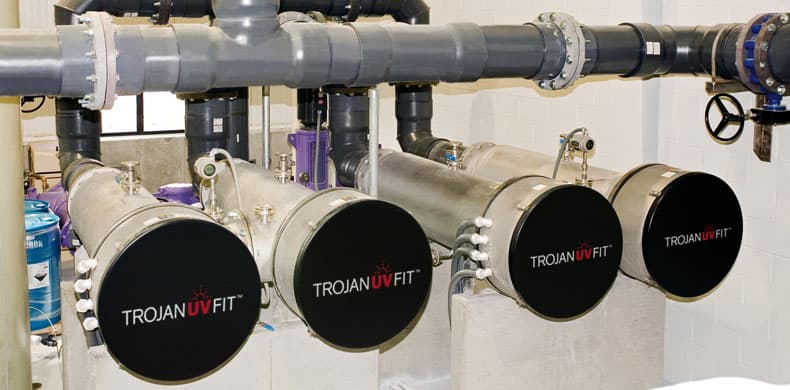

The compact chamber footprint simplifies indoor retrofit installations and can also be installed in parallel or in series, making it simple to incorporate redundancy or future expansion needs. UV lamps and sleeves are fully serviceable from the chamber end cap, allowing the system to be installed against walls, other equipment or piping.
