Proven Pre-engineered Wastewater System

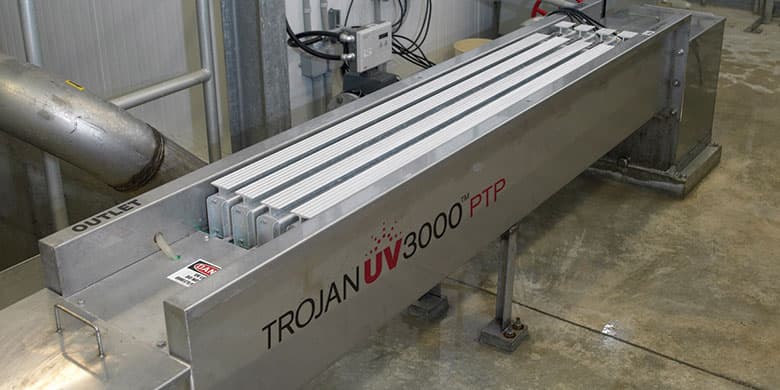

The TrojanUV3000®PTP (Packaged Treatment Plant) is ideally suited to treat flows up to 3 MGD (473 m3/hr). It is pre-engineered for quick, economical installation and is designed with proven components to provide a dependable UV solution for small wastewater treatment applications.

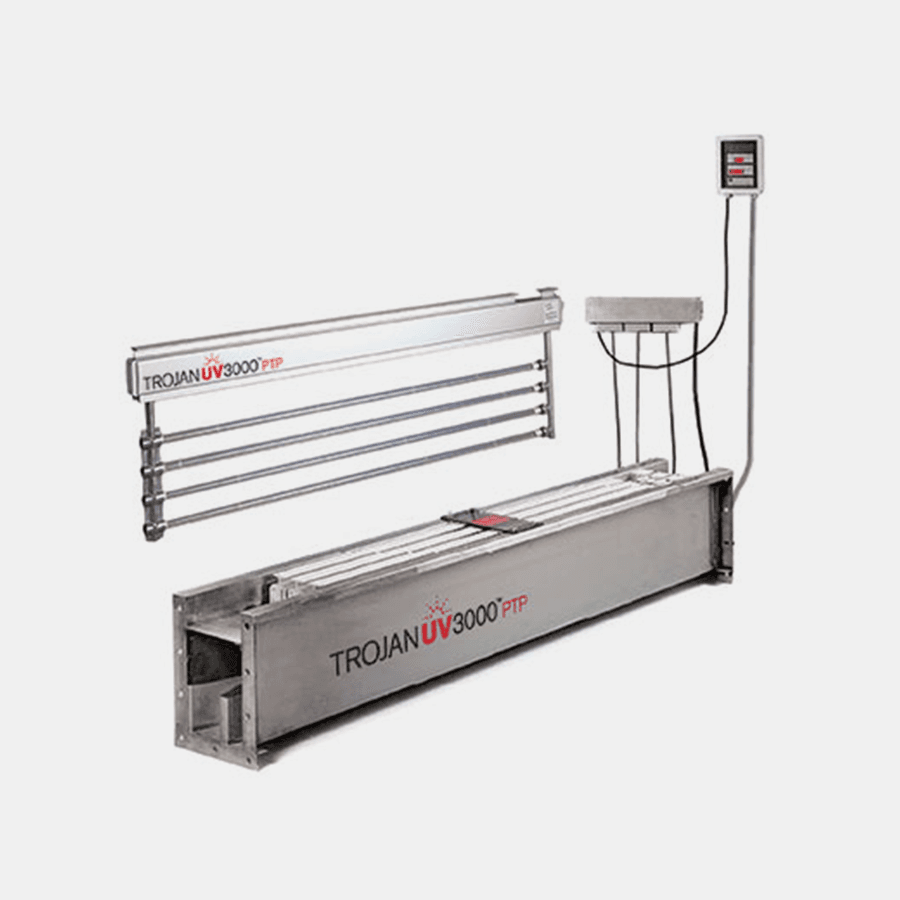

Compact Modules
Space-saving electronic lamp drivers are housed right in the modules, not in separate external cabinets – this minimizes the footprint of the UV system and eliminates the need for air-conditioning. Lamp drivers are cooled by convection and each UV module includes a UV lamp status indicator for at-a-glance monitoring.


Operator-friendly Maintenance
Modules are lightweight and can be individually removed for periodic sleeve cleaning and lamp change-outs. An optional mobile cleaning rack simplifies maintenance procedures.


Proven Performance, Components and Design
The TrojanUV3000PTP has been validated through microbial testing. Through this testing, performance data has been generated for UV dose delivery to inactivate microorganisms Escherichia coli (E. coli ) and fecal coliform.


Is your wastewater treatment plant's flow rate 3 to 5 MGD?
If so, the TrojanUV3000®B is another option you should consider.
System Specification
System Characteristics | TrojanUV3000PTP |
|---|---|
Typical Applications | Up to 3 MGD (473 m3/hr) |
Lamp Type | Low-pressure |
Lamp Driver Type | Electronic; non-variable |
