A Robust, Versatile, and Cost-effective UV System

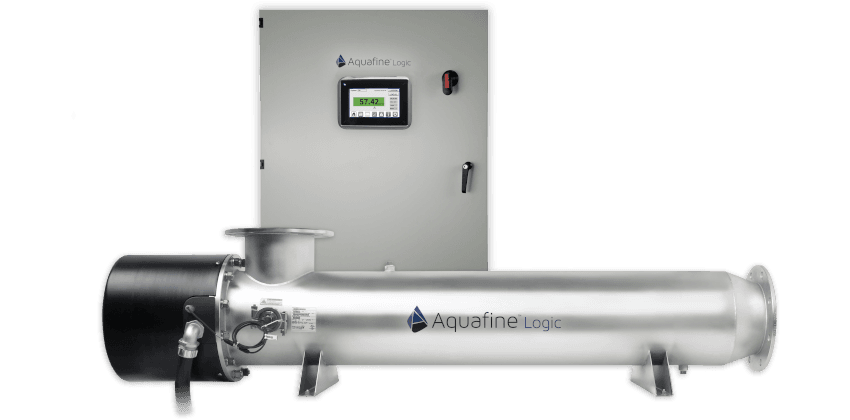

Designed for meeting the rigid quality standards of the recreational water, life sciences, and food & beverage markets, the Logic™ series features the industry’s most advanced low-pressure, high-output (LPHO) amalgam lamp technology. The Logic Series consists of a 316L stainless steel treatment chamber and a UL rated steel control cabinet featuring a microprocessor-based controller. The L-shaped chamber design was developed using advanced computer modeling, resulting in 40% greater hydraulic efficiency than conventional systems.

Its compact size maximizes installation flexibility and preserves floor space with the ability to mount in-line, horizontally, or vertically. Single-ended lamps and quartz sleeves allow fast lamp change-outs without tools and features an optional manual or automated sleeve cleaning system that can be operated while the chamber is online. In addition to a comprehensive list of standard features, each system undergoes rigorous quality checks and electronic functionality and hydrostatic pressure testing before leaving our facility.

The Logic Series is used to inactivate E.Coli and Fecal Coliform and it can be used to break down ozone. It is certified to NSF/ANSI/CAN 61 and 372 and meets the stringent standards of NSF International.
